How to Choose the Right Cable Tray Bracket for Your Project?
Choosing the right cable tray bracket for your project can be a daunting task. Industry expert, John Smith, once stated, "The support and strength of your cable management system depend on the right bracket." This insight highlights the importance of selecting the appropriate cable tray bracket for various applications.
When assessing your options, consider factors like material, size, and load capacity. Different environments may require brackets with specific features. For instance, stainless steel brackets endure harsh conditions, while plastic ones may suffice for lighter loads. The correct choice can significantly impact the efficiency of your wiring setup.
It's essential to reflect on your needs. Are you prioritizing durability or cost? Sometimes, cheaper options may lead to more frequent replacements. Reliability often outweighs initial savings in the long run. A well-chosen cable tray bracket not only enhances safety but also ensures compliance with industry standards. Remember, the right choice can prevent costly downtime and maintenance in the future.
Understanding the Importance of Cable Tray Brackets in Project Design
When designing any project, cable tray brackets play a critical role. They provide the necessary support for cable trays, ensuring that cables are organized and safely managed. According to industry reports, improperly supported cable trays can lead to increased maintenance costs by up to 20%. This emphasizes the importance of selecting the right brackets.
Choosing the correct cable tray brackets requires understanding load specifications. Brackets must be able to support the combined weight of cables without risk of failure. Inadequate support might not show immediate issues. Over time, this leads to sagging trays and tangled cables. The National Electrical Manufacturers Association (NEMA) indicates that up to 25% of electrical installation failures stem from insufficient cable management.
Additionally, materials used for brackets can significantly impact durability. Corrosion-resistant materials are essential for environments exposed to moisture. Research shows that using quality materials can extend the lifespan of brackets by 50%. However, many projects overlook this aspect. This negligence can result in increases in both safety hazards and costs in the long run.
Identifying the Types of Cable Tray Brackets Available on the Market

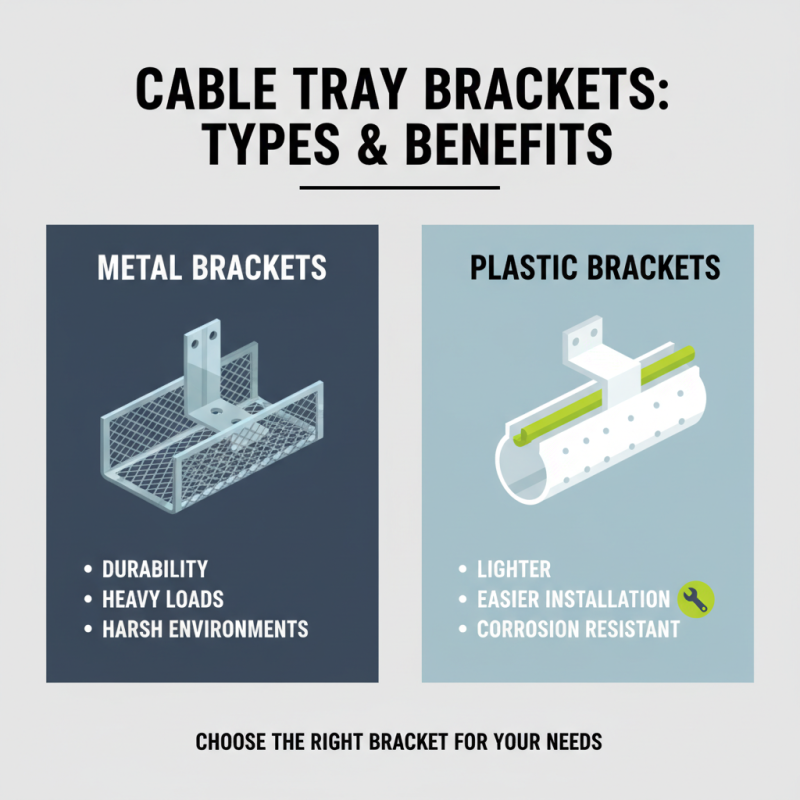

When considering cable tray brackets, it's important to understand the different types available. Cable tray brackets come in various materials and designs. Each type has distinct advantages. For instance, metal brackets provide durability. They withstand heavy loads and harsh environments. On the other hand, plastic brackets are lighter and easier to install.
The common types include wall brackets, ceiling brackets, and floor brackets. Wall brackets are great for vertical installations. They often come with adjustable arms for flexibility. Ceiling brackets support trays overhead, saving floor space. Floor brackets, conversely, are sturdy for ground-level installations. The choice depends on your project's specific needs.
Installing cable tray brackets might seem straightforward. However, a few details require careful consideration. Ensure proper spacing between brackets for load distribution. Sometimes, it’s easy to overlook the weight capacity. Using insufficient brackets can lead to failures. Thus, always choose a type that suits your installation environment.
Evaluating Load Capacity and Material Strength for Your Needs
When selecting a cable tray bracket, evaluating load capacity and material strength is crucial. Each project has specific requirements that must be met. Understanding how much weight the bracket needs to support is essential. A bracket that is too weak can lead to failure, causing safety hazards and costly repairs. Take the time to calculate the total load, including the cables and any additional equipment.
Material strength plays a significant role in ensuring durability. Common materials include steel, aluminum, and fiberglass. Steel offers high strength and load capacity but may be heavier. Aluminum is lighter and resistant to corrosion, making it suitable for various environments. Fiberglass provides excellent strength-to-weight ratios but may not always be the best choice for heavy loads.
It’s essential to reflect on your project's unique needs. Are you working in a high-humidity area? Will the bracket be exposed to extreme temperatures? Assessing these factors will determine the most appropriate material and design. Testing different options can also lead to unexpected findings. No solution is perfect, and past experiences can show where adjustments may be necessary.
How to Choose the Right Cable Tray Bracket for Your Project?
| Bracket Type |
Load Capacity (lbs) |
Material |
Weight (lbs) |
Corrosion Resistance |
| Standard Bracket |
200 |
Steel |
4 |
Moderate |
| Heavy Duty Bracket |
500 |
Aluminum |
3 |
High |
| Lightweight Bracket |
100 |
Plastic |
1 |
Low |
| Galvanized Bracket |
300 |
Galvanized Steel |
5 |
Very High |
Assessing Compatibility with Cable Tray Systems and Installation Environment
Choosing the right cable tray bracket hinges on assessing compatibility with existing cable tray systems and the installation environment. Industry reports indicate that improper bracket choice can lead to safety hazards and costly rewiring. It is essential to understand the load capacities your project necessitates. A 2021 study from the National Electrical Manufacturers Association shows that nearly 30% of failed installations stem from inadequate load assessments.
The installation environment plays a critical role. For instance, damp locations may require corrosion-resistant brackets, whereas indoor spaces might prioritize aesthetic factors. Additionally, a research survey by the International Electrical Testing Association reveals that 15% of professionals overlook environmental conditions when selecting brackets. This oversight can compromise integrity over time. Evaluating how different materials respond to specific conditions can prevent future disasters.
Compatibility goes beyond physical dimensions. Brackets must align with your tray's design for secure fittings. Engineers often suggest conducting a thorough compatibility check before procurement. A misalignment can lead to vibrations and potential cable damage, raising long-term costs. Thus, investing effort in understanding these factors is paramount for project success.
