Introducing the Molded Cable Tray: A New Era in Cable Management

The molded cable tray is revolutionizing the cable management industry with its innovative design and material efficiency. Using advanced punching technology, this new type of Cable Tray Transforms the traditional flat tray structure into a three-dimensional, embossed design. This unique design significantly enhances the tray's performance by increasing its resistance to bending, twisting, and overall instability, thereby improving its rigidity and load-bearing capacity.

In comparison to conventional Cable Trays, the molded tray offers a major advantage in material savings. According to the T/CECS 31-2017 "Steel Cable Tray Engineering Technical Code," the molded tray requires significantly thinner materials, reducing material thickness by up to 40%. This reduction not only lowers material costs but also makes the installation process faster and more convenient, as lighter trays are easier to handle and assemble on-site.

One of the most remarkable features of the molded tray is its increased load-bearing capacity. For example, a traditional flaT Cable Tray with a 1.5 mm thickness can support up to 180 kg, while a molded tray of the same size (400*150 mm) with a reduced 1.0 mm thickness can support up to 460 kg. This represents a stunning 2.5-fold increase in strength, providing a more robust solution for demanding applications.

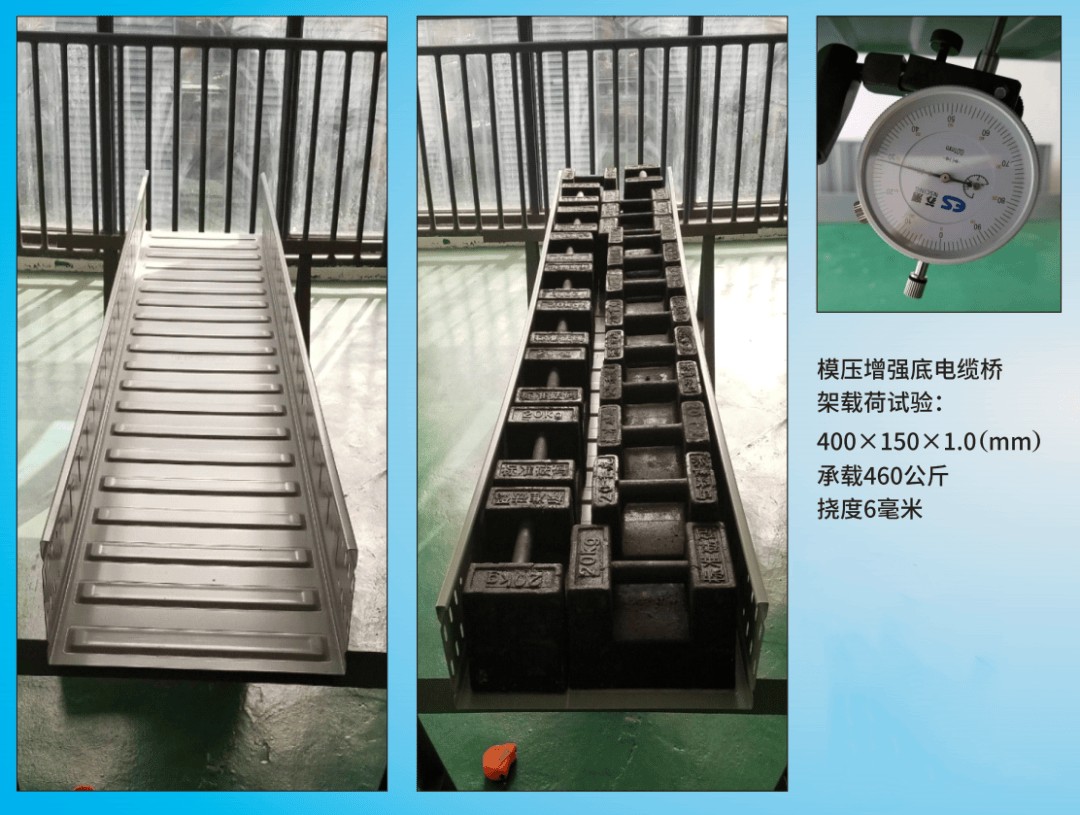

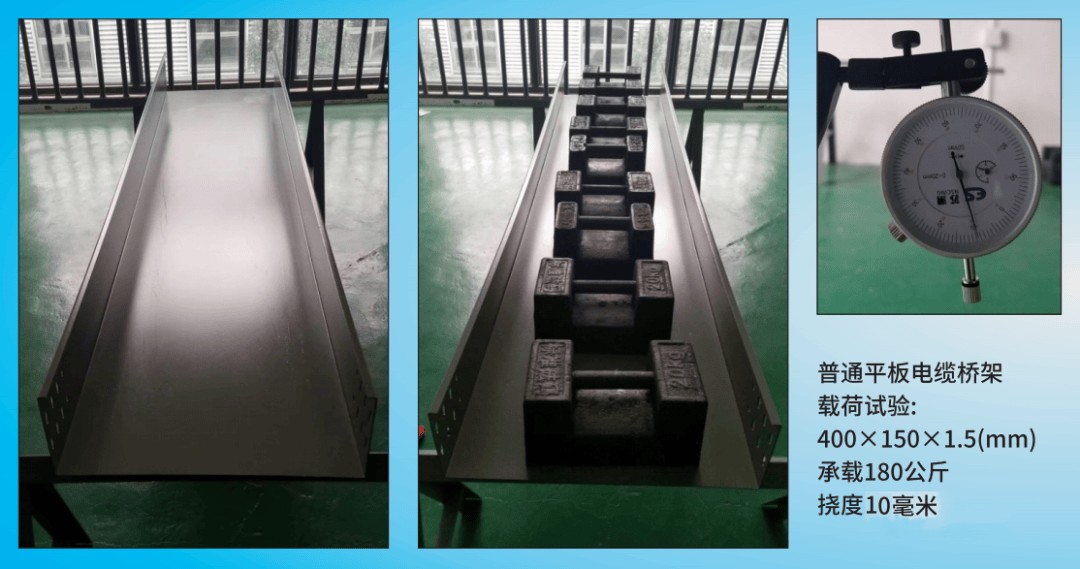

Image 1 & 2 : Load test between common through cable tray and molded cable tray.

Sources from : https://m.sohu.com/a/826819329_121123896

Additionally, molded cable trays are often color-coded to distinguish their use in different sectors. For instance, gray-white trays are commonly used in high-voltage power systems, while yellow trays are designated for low-voltage systems. Blue trays are used for electromechanical installations, and red trays are typically used for fire protection systems. This color-coding system ensures easy identification and enhances the organization and safety of complex installations.

The molded cable tray is an energy-efficient, cost-effective, and durable solution that meets the growing needs of modern infrastructure. By combining material savings with enhanced performance and clear sector-specific differentiation, it sets a new standard for cable management across a wide range of industries.

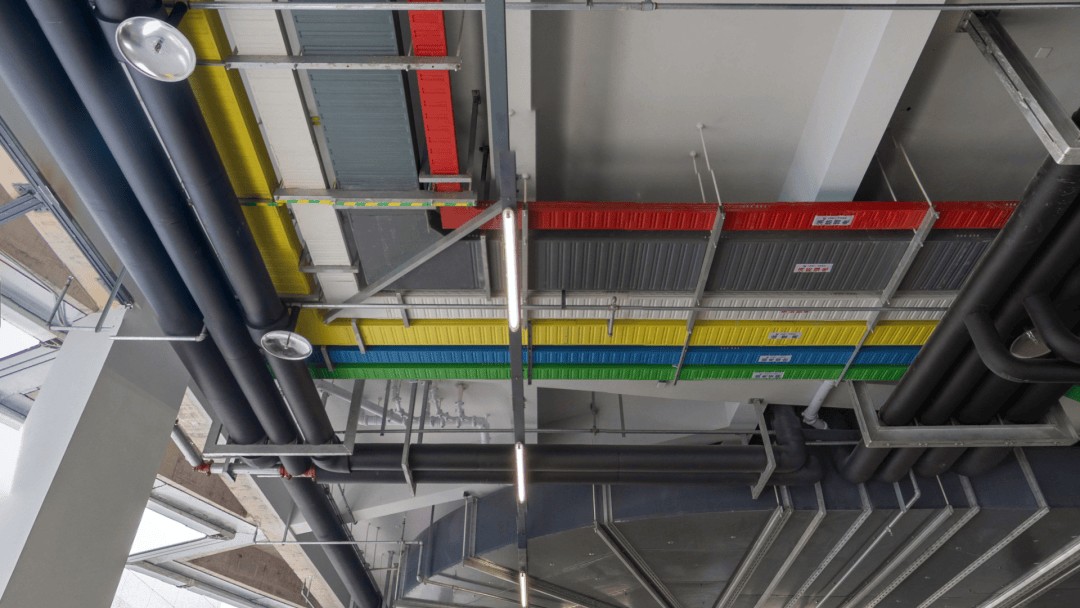

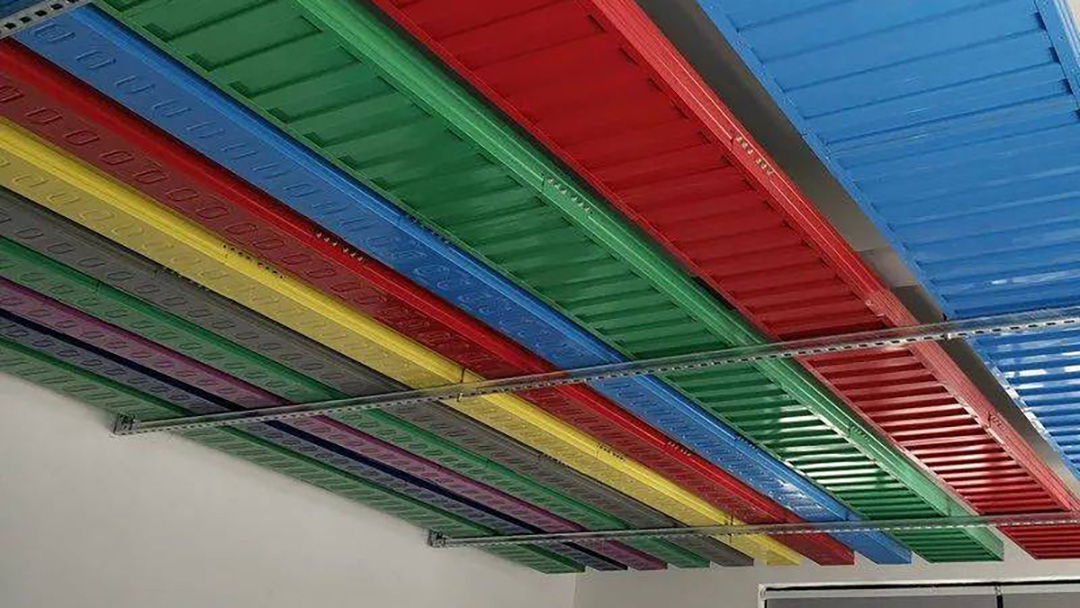

Image 3 & 4 : Molded cable tray application scenario, Sources from : https://m.sohu.com/a/826819329_121123896
